  • How to develop gas chromatography methods

    If you’re just starting out with gas chromatography (GC), this guide is for you. Let’s break down the basics, add some real-life examples, and help you get comfortable with GC method development—no jargon overload, just practical advice and friendly tips.

    So, What’s Gas Chromatography Anyway?

    GC is a super useful technique for separating and analyzing stuff that can be turned into a gas. You’ll find it everywhere—from testing water quality to checking for impurities in medicines.

    The Main Parts:

    • Stationary Phase: This is what stays put inside the column. It can be solid or liquid. Most GC columns today use a liquid stationary phase in thin capillary tubes.
    • Mobile Phase: This is the gas that carries your sample through the column. Common choices are nitrogen, helium, or hydrogen.
    • Fun Fact: GC was invented by A. T. James and A. J. P. Martin back in 1952.

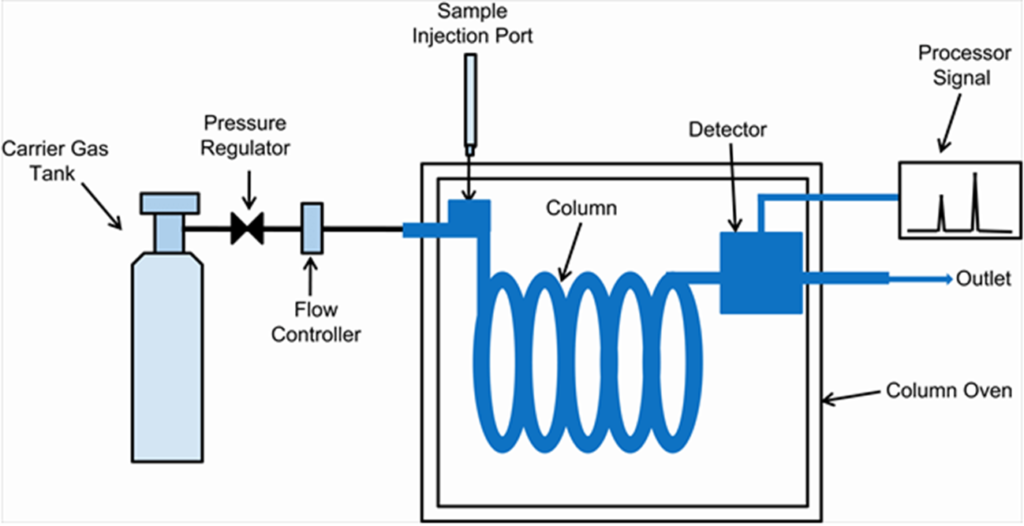

    How Does GC Work? (It’s Easier Than You Think!)

    1. Inject Your Sample: Heat it up so it turns into a vapor, then send it into the column with a stream of carrier gas.
    2. Separation Time: As your sample travels through the column, its components get separated based on how they interact with the stationary phase.
    3. Detection: Each separated part pops out of the column and gets detected—showing up as peaks on a graph called a chromatogram.

    Practical Example:
    Imagine you want to check if your drinking water contains any leftover solvents. You inject a tiny amount into the GC, and the instrument separates and detects each solvent, showing you exactly what’s in there!

    Picking the Right Column (Don’t Stress!)

    • Capillary Columns: These are the go-to for most GC work. They’re efficient and easy to use.
    • Stationary Phase Matters: For polar compounds, grab a polar column (like cyanopropyl or WAX). For nonpolar stuff, use a nonpolar column (like PDMS).
    • Size Guide: A 30-meter column with a 0.25 mm inner diameter and 0.25 μm film thickness is a solid starting point. If you want faster results or have fewer things to separate, try a 15-meter column.

    Practical Example:
    Let’s say you’re analyzing alcohols in a beverage. A polar column like DB-WAX will give you sharp, well-separated peaks for those alcohols. If you’re checking for hydrocarbons in gasoline, a nonpolar column like DB-1 is your best friend.

    Carrier Gases: Which One Should You Use?

    • Hydrogen: Fast and sharp results, but you need to be careful with safety.
    • Helium: Great performance, but it can be pricey and sometimes hard to find.
    • Nitrogen: Cheap, but not as efficient.
    • For GC-MS, helium is usually the top pick.

    Practical Example:
    If you’re running a routine test and want to save money, nitrogen is fine. But if you need high resolution for a tricky sample, go with helium or hydrogen (just follow safety protocols!).

    What Can You Analyze with GC?

    • Volatile compounds (like residual solvents)
    • Small molecules without UV chromophores
    • Some big, nonpolar compounds
    • Not volatile? No problem—many compounds can be chemically tweaked (derivatized) to make them GC-friendly.

    Practical Example:
    You’re testing a pharmaceutical intermediate that doesn’t vaporize easily. By derivatizing it (adding a chemical group), you make it volatile enough for GC analysis.

    Getting Your Sample Into the GC

    • Liquid Injection: Adjust how much you inject, the temperature, and the solvent to avoid overloading.
    • Headspace Analysis: Perfect for sniffing out volatile compounds in tricky samples.
    • SPME (Solid Phase Micro Extraction): Boosts sensitivity for tiny amounts and cuts down on background noise.

    Practical Example:
    You’re investigating a weird smell in fertilizer. Headspace analysis might not pick up the culprit, but SPME can concentrate those smelly compounds and help you identify the source!

    Inlet Types: What’s Best for You?

    • Split Injection: Good for strong samples; you can control how much goes in.
    • Splitless Injection: For detecting tiny amounts; tweak purge time and starting temperature.
    • Cool On-Column: Great for heat-sensitive stuff.
    • Multi-Mode Inlet: Super flexible—lets you program temperature and try different injection styles.

    Practical Example:
    If you’re analyzing trace pesticides in food, use splitless injection to get the best sensitivity. For a concentrated solvent sample, split injection prevents overload and keeps your chromatogram clean.

    Tips for Better Separation

    • Temperature Programming: Start low, ramp up slowly (5–10 °C/min), and hold at the end to get everything out.
    • Column Tweaks: Smaller diameter and thicker film can help you see more detail.
    • Carrier Gas Flow: Adjust for your column and detector type.

    Practical Example:
    You’re running a mix of solvents. Start at 40°C, ramp up to 200°C at 10°C/min, and hold for a few minutes. If two peaks are too close, slow down the ramp or try a thinner column.

    Meet the Detectors

    • FID (Flame Ionization Detector): Awesome for hydrocarbons, super sensitive.
    • TCD (Thermal Conductivity Detector): Universal and gentle, but not as sensitive.
    • ECD (Electron Capture Detector): Loves halogenated compounds—super sensitive!
    • NPD (Nitrogen Phosphorus Detector): Great for nitrogen and phosphorus.
    • GC-MS (Mass Spectrometry): The all-rounder—detects almost anything, with high sensitivity.

    Practical Example:
    If you’re checking for pesticide residues, ECD is your go-to. For general impurity profiling, FID or GC-MS will cover most needs.

    Friendly Advice for New Chromatographers

    • Take Care of Your Columns: Store them right, don’t overheat, and keep moisture out.
    • Start Simple: Pick a general-purpose column, set up your injection and detector, then tweak temperature and flow as you go.
    • Use Online Tools: Check out calculators and chromatogram libraries from Agilent and Restek—they’re lifesavers for troubleshooting and method transfer.

    Practical Example:
    If your peaks look weird or you’re getting “column bleed,” check if you’ve exceeded the temperature limit or if the column needs replacing. Use online calculators to double-check your injection volume and liner capacity.

    Common Mistakes to Avoid in Gas Chromatography

    1. Overloading the Column

    Injecting too much sample can cause broad, messy peaks and poor separation. Always start with a small injection volume and increase only if needed.

    2. Wrong Column Choice

    Using the wrong stationary phase or column dimensions can make it hard to separate your compounds. Match your column’s polarity to your analytes (e.g., polar column for polar compounds) and start with standard dimensions like 30 m × 0.25 mm ID × 0.25 μm film thickness.

    3. Ignoring Temperature Limits

    Columns have maximum temperature ratings. Exceeding these can cause “column bleed” (extra noise and ghost peaks) and shorten column life. Always check the specs before running high-temperature programs.

    4. Improper Sample Preparation

    Injecting dirty or particulate-laden samples can clog the inlet or column. Always filter or clean up your samples as needed and consider headspace or SPME for complex matrices.

    5. Incorrect Inlet Settings

    Choosing the wrong injection mode (split vs. splitless) or not optimizing purge times can lead to poor sensitivity or overloaded peaks. Match your inlet settings to your sample concentration and analysis goals.

    6. Neglecting Column Care

    Leaving columns open to air, moisture, or not storing them properly can damage the stationary phase. Always cap columns when not in use and store them as recommended.

    7. Using the Wrong Carrier Gas or Flow Rate

    Not all detectors or columns work best with the same carrier gas or flow. For example, using nitrogen with GC-MS can reduce sensitivity. Check your method and instrument recommendations.

    8. Skipping System Checks

    Not checking for leaks, proper connections, or instrument readiness can lead to wasted samples and time. Always run a quick system check before starting your analysis.

    9. Not Optimizing Temperature Programs

    Using a single isothermal temperature or a too-fast ramp can cause poor separation. Try moderate ramps (5–10 °C/min) and adjust as needed for your analytes.

    10. Forgetting to Use Online Tools

    There are great calculators and chromatogram libraries online (like from Agilent and Restek) to help with method setup and troubleshooting. Don’t hesitate to use them—they can save you a lot of guesswork.

    Wrapping Up

    GC is a fantastic tool, and you don’t need to be a wizard to get good results. Start with the basics, experiment a little, and you’ll be separating compounds like a pro in no time. Remember, even small changes can make a big difference—so don’t be afraid to play around and see what works!

    Want more tips or have questions? Drop a comment below or check out these handy resources:

  • The SFC back pressure regulator: Things to look out for!

    Supercritical Fluid Chromatography (SFC) has become a powerful tool in analytical and preparative separations, especially for chiral compounds and thermally labile molecules. At the heart of a stable and reproducible SFC system lies the back pressure regulator (BPR)—a deceptively simple component that can make or break your chromatographic performance.

    Whether you’re troubleshooting erratic retention times or scaling up a method, here are key things to watch out for when working with an SFC BPR.

    ⚙️ 1. Pressure Stability Is Everything

    The BPR maintains the system above the critical pressure of CO₂ (around 1,070 psi), ensuring the mobile phase remains supercritical. Even small fluctuations can shift the phase equilibrium, leading to:

    • Retention time drift
    • Peak broadening
    • Loss of resolution

    Look for regulators with active feedback control or electronic pressure regulation to minimize these issues, especially in high-throughput or gradient methods.

    🧼 2. Cleanliness and Maintenance

    CO₂ expands rapidly post-column, and any particulates or precipitates can clog the BPR. This is especially common when:

    • Using modifiers like methanol with buffers or salts
    • Running crude samples or extracts

    Regular flushing and preventive maintenance are essential. Some labs even dedicate a separate BPR for dirty samples to avoid cross-contamination.

    🔄 3. Flow Compatibility and Dead Volume

    Not all BPRs are created equal. Mismatched flow rates or excessive dead volume can cause:

    • Pressure spikes
    • Ghost peaks
    • Baseline noise

    Ensure your BPR is rated for your system’s flow range (analytical vs. preparative) and has minimal internal volume. Low-dead-volume designs are ideal for fast gradients and narrow-bore columns.

    🌡️ 4. Temperature Effects

    Temperature influences CO₂ density and viscosity, which in turn affects pressure regulation. If your BPR is exposed to ambient temperature swings or lacks thermal insulation:

    • Expect pressure instability
    • Watch for phase transitions in the mobile phase

    Some systems offer heated BPRs to maintain consistent conditions—worth considering for sensitive methods.

    🧪 5. Modifier Compatibility

    Organic modifiers like methanol, ethanol, or acetonitrile can interact with BPR materials. Over time, this may lead to:

    • Swelling or degradation of seals
    • Corrosion of internal components
    • Leaching or contamination

    Choose BPRs with chemically resistant materials (PEEK, stainless steel, Hastelloy) and verify compatibility with your modifier blend.

    🧭 6. Troubleshooting Tips

    If you’re seeing erratic behavior, try these quick checks:

    • Bypass the BPR briefly to isolate the issue
    • Monitor pressure logs for spikes or drops
    • Inspect for leaks or blockages downstream
    • Swap in a spare BPR if available

    A faulty BPR can mimic column degradation or pump issues—don’t overlook it in your diagnostic workflow.

    Final Thoughts

    The SFC back pressure regulator may sit quietly at the end of your system, but its role is anything but passive. Treat it with the same care and scrutiny as your column or detector. A well-maintained, properly matched BPR ensures your supercritical separations stay sharp, reproducible, and robust.

  • Reference wavelength : When should I use it?

    In the world of liquid chromatography with UV detection (LC-UV), precision is everything. Whether you’re quantifying trace analytes or troubleshooting baseline drift, one often-overlooked tool can make or break your data integrity: the reference wavelength. Let’s unpack what it is, when to use it, and how to avoid common pitfalls.

    🌈 What Is a Reference Wavelength?

    In LC-UV systems—especially those equipped with diode-array detectors (DADs)—a reference wavelength is a secondary wavelength used to correct for baseline fluctuations. It works by subtracting absorbance at the reference wavelength from the primary analytical wavelength in real time. The goal? A flatter baseline and cleaner signal.

    This technique is particularly useful in gradient elution methods, where changes in solvent composition or temperature can cause baseline drift that complicates peak integration.

    ✅ When Should You Use It?

    Reference wavelengths are best used when:

    • Baseline drift is significant due to gradient changes or temperature fluctuations.
    • Your analyte does not absorb at the reference wavelength, ensuring no signal loss.
    • You want to improve signal-to-noise ratio for low-concentration analytes.
    • You’re working with complex matrices where background absorbance varies.

    Example Use Case:
    Imagine you’re analyzing a peptide mixture using a gradient from water to acetonitrile. As the organic content increases, the baseline drifts upward. By selecting a reference wavelength where no peptide absorbs (e.g., 360 nm), you can subtract this drift and stabilize the baseline at your primary detection wavelength (e.g., 214 nm).

    ⚠️ When to Avoid It

    Despite its benefits, reference wavelength subtraction can be risky:

    • If your analyte absorbs at the reference wavelength, you may unintentionally subtract part of the signal, leading to underreporting or missed peaks.
    • If validation is critical, you must preserve raw data. Reference subtraction alters the original signal, and you won’t have access to unprocessed data unless you record both channels separately.
    • If you’re unsure of your sample’s spectral profile, it’s safer to collect full spectra and post-process rather than subtract in real time.

    🧪 Best Practices

    • Choose a reference wavelength with zero absorbance for all analytes of interest.
    • Validate your method by comparing chromatograms with and without reference subtraction.
    • Use dual-channel acquisition if possible, to preserve raw data for audit trails.
    • Consult spectral data (e.g., anisic acid spectra) to optimize both sample and reference bandwidths.

    🧠 Final Thoughts

    Reference wavelengths can be a powerful ally in LC-UV analysis—but only when used judiciously. Like any analytical tool, they require understanding, validation, and thoughtful application. When in doubt, collect full spectral data and post-process with care.

  • Mass Balance in Active Ingredient (AI) analysis.

    Mass balance is a fundamental concept in chemical and pharmaceutical sciences, ensuring accuracy in quantifying chemical yields and assessing degradation. But what exactly is mass balance, and why is it so crucial for analysts?

    What is Mass Balance?

    At its core, mass balance applies the Law of Conservation of Mass, allowing scientists to sum assay values and degradation products to verify if they add up to 100% of the initial substance—within the limits of analytical precision. This method plays a key role in pharmaceutical manufacturing, chemical synthesis, and quality control.

    Why is Mass Balance Important?

    Mass balance ensures the accuracy and efficiency of chemical transformations. In practical applications, it serves three major purposes:

    ✅ Synthetic Route Development – Chemists use mass-balance calculations to assess reaction yields and transformation efficiencies.

    ✅ Pharmaceutical Manufacturing – Helps quantify material losses inherent in multi-step manufacturing processes.

    ✅ API Reference Standard Potency – Determines the true potency of an Active Pharmaceutical Ingredient (API) by subtracting non-API content from 100%.

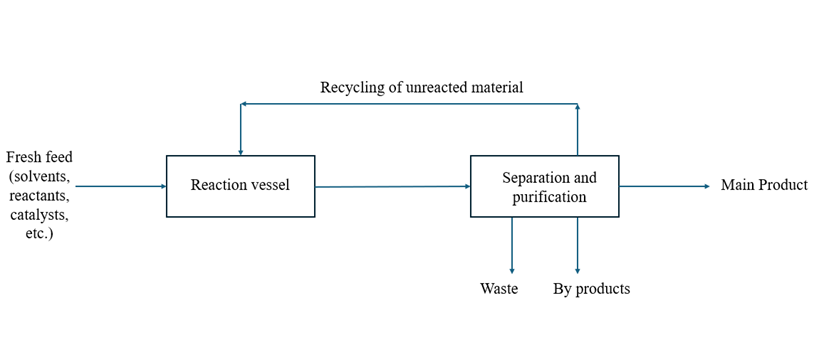

    Fig 1. A flow chart of reactants to main product with byproducts, waste and unreacted materials involved in the mass balance determination

    Factors Affecting Mass Balance Measurement

    Achieving accurate mass balance requires careful consideration of various analytical challenges:

    🔬 Sensitivity Differences – Reactants and degradation products might not have equal response factors (Rfs), impacting detection accuracy.

    🧪 Multiple Reactants – The API isn’t necessarily the only reactant, which can complicate calculations.

    🌡 Recovery Issues – Losses due to volatility, incomplete elution, or non-detection must be considered.

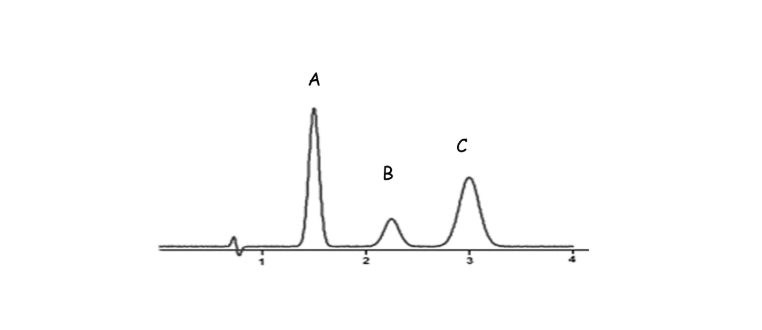

    Fig 2. Sample chromatogram showing main AI (A) and degradant peaks (B and C) that can have different response factors

    Analytical Conditions to Consider

    To ensure reliable mass balance calculations, analysts should implement robust testing conditions:

    ✔️ Peak Purity Analysis – Confirms the integrity of API material.

    ✔️ Resolution of Degradation Peaks – Prevents misinterpretation of overlapping signals.

    ✔️ Detector Sensitivity Adjustments – Using multiple detectors (e.g., ELSD, CAD) enhances response accuracy.

    ✔️ Accounting for Assay Variability – Ensures precision in mass balance determination.

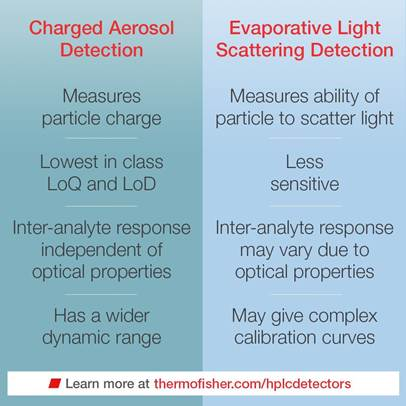

    Fig 3. Comparison of CAD and ELSD detectors from www.thermofisher.com/hplcdetectors

    Conclusion

    Mass balance measurement is critical yet complex. Analysts must consider various challenges, including:

    ➡ Reactive species beyond the API

    ➡ The chemistry of degradation reactions

    ➡ Detector sensitivity towards reactants and degradation products

    By optimizing analytical conditions and ensuring significant degradation, scientists can maximize precision in mass balance determinations.
